ÄKTA Frac-950

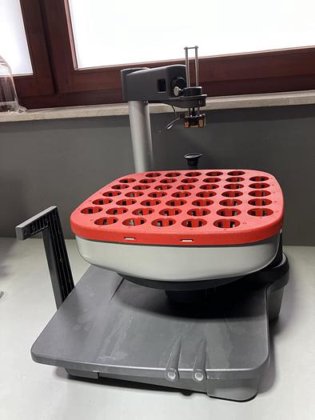

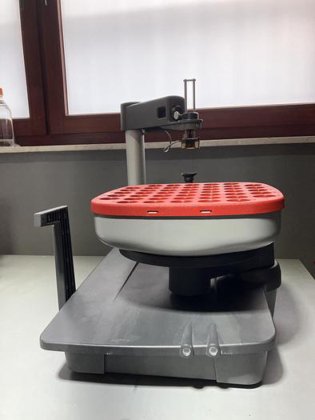

GE AKTA Frac-950 Fraction Collector

Fraction Collector Frac-950 is an automated fraction collector for use

in ÄKTA™ design chromatography systems. It is intended to be

operated as an integrated part of an ÄKTAdesign chromatography

system running UNICORN™ software. Version 3.21 or higher is needed

for standard mode, 4.0 or higher for prep mode.

Frac-950 is equipped with an accumulator to eliminate spillage at high

flows. A drop sensor that can be used to control tube change at low

flows is also included.

Frac-950 is delivered with one standard mode rack. Different types of

racks accommodating different sizes and types of tubes are available as

options.

Features:

• Collection of up to 392 fractions – time or volume base – fixed volume and/or peak fractionation – fixed capillary tip – moving rack (standard mode) – fixed rack – moving capillary tip (prep mode) – fractionation order: row-by-row column-by-column serpentine-row serpentine-column
• Choice of six different collecting racks—four for standard mode collection and two for preparative (prep) mode. One 18/30 mm tube rack for standard mode collection is supplied with Frac-950. The others are optional accessories.
• Two different methods for reducing spillage during tube change: DropSync or Accumulator.
