DNA / RNA Synthesizer

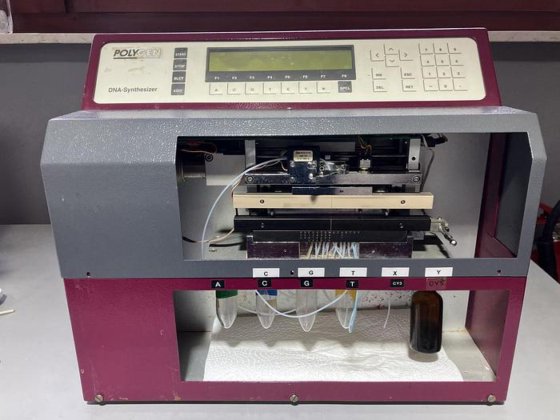

10-Column DNA Synthesizer

10 oligonucleotide syntheses in one run

---

Minimal reagent consumption

• Extremely economical in reagent consumption due to the patented

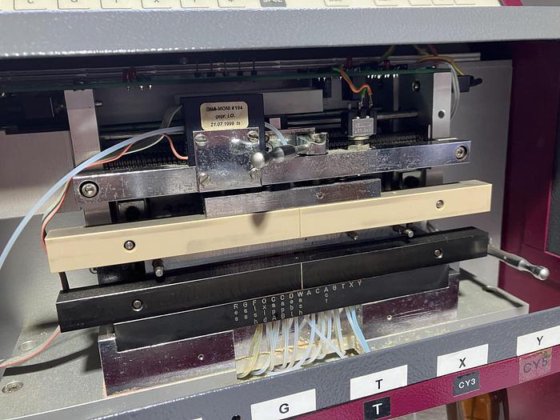

• Slider Block of low dead volume (ca. 3 µl).
• In the fast program:
• only 0.6 ml total solvent consumption per coupling
• In the high-quality program:
• only 1.1 ml total solvent consumption per coupling
• Measurement of reagent addition is by integrated metering pump
• Variable flow rates and times in each individual program step



No expensive pre-packed columns necessary

• Costly consumables such as pre-packed columns become unnecessary as the reaction vessels are integrated in the Slider Block system
• The CPG materials are directly fed into the column slider.



Wide synthesis range

• From 10 nmole – 1 µmole per column.
• From 1 µmole – 5 µmole with separate slider



Short synthesis times

• 10 couplings in 6 minutes – 10 oligo-syntheses in one run (10-Column DNA Synthesizer).
• 20-unit Poly-T in 1h 45 min using the fast program and up to 2 h 55 min using the high-quality program.



High degree of user-friendliness and ease of maintenance

• No valve replacement required.
• Maintenance-free due to patented Slider Block system.
• Service and maintenance contracts unnecessary.



Direct data transfer from PC

• The 10-Column DNA Synthesizer can be operated as a stand-alone instrument or with various software suites via PC.
• Direct transfer of sequences from your database to the synthesizer is thus possible.



Flexible, user-oriented software

• Various software suites are available



DMT system for reliable process monitoring

• Each individual column can be monitored by DMT; the entire synthesis process is thus constantly under review. If the minimum required absorption is not achieved, a warning signal is given; alternatively, the process can be stopped.
