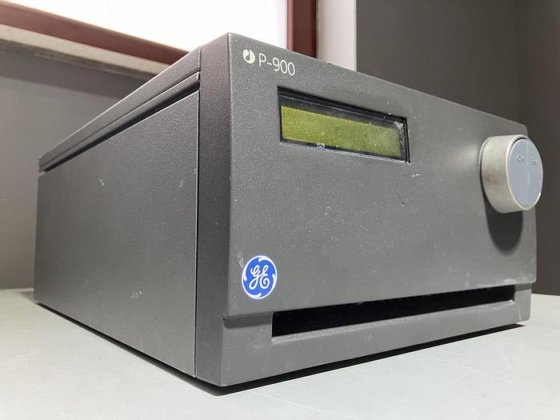

GE ÄKTA Pump P-900

GE ÄKTA Pump P-900

All P-900 models are high performance laboratory pumps for use in

liquid chromatography and other applications where accurately

controlled liquid flow is required. Double mode can be selected to

double the flow rate range.

Features:

• P-901
  • Pressure range 0 — 10 MPa (100 bar, 1450 psi).
  • Flow rate range 0.01 — 100 ml/min isocratic and gradient mode.
  • Double mode flow rate range of 0.01 — 200 ml/min isocratic mode.

• P-903
  • Pressure range 0 — 25 MPa (250 bar, 3625 psi).
  • Flow rate range 0.001 — 10 ml/min isocratic and gradient mode.
  • Double mode flow rate range of 0.001 — 20 ml/min isocratic mode.

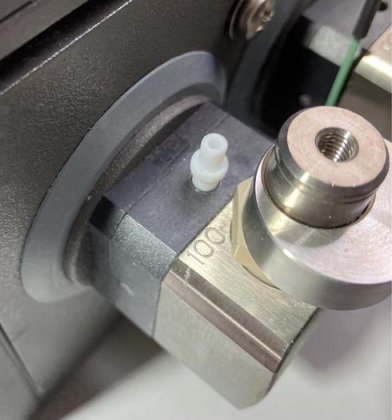

• The pumps are equipped with 2 pump modules, A and B, including two pump heads each. This allows for binary gradients with high pressure mixing.
• All pumps have a pressure sensor connected to pump module A.
• Low pulsation.
• Switch-valve control for low pressure gradients and BufferPrep.

All versions are run with the same software. Normal or double mode, as well as the size of the pump heads are stated in a Setup menu.
